Steel, 0.55 mm / 25.5 gauge, 275 g/m² zinc coating
Trapeze — Long Panel
$26.39/ panel
Plus tax

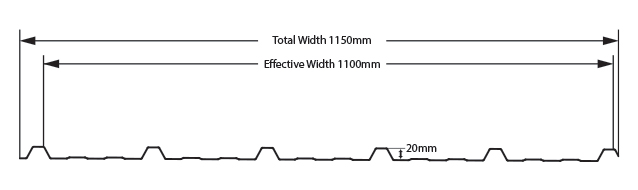

Effective width1100 mm (43.30 in)
Total width1150 mm (45.27 in)
Rib / step height20 mm (0.78 in)
Minimum length75.50 cm (29.7 in)
RAL colour: RAL 3011 · Brown Red
Screen colours are indicative. Ask for a physical sample before committing to a finish.
Panel length: 3 wave (L: 4')
1
In stock1 × $26.39 / panelSubtotal$26.39
Lifetime roofing solutionA metal roof will last your lifetime without needing repair or replacement — unlike shingles, which need replacing about every 10 to 12 years.
Environmentally friendlyMetal roofs are made from recycled metal and are fully recyclable in future. Shingles end up right in the landfill.
More energy efficientHeating and cooling costs come down compared with shingles, and the risk of mould in your attic is eliminated.
Frequently bought together
Trapeze — Long Panel
$26.39
+
Corrugated (Ag) Panel
$2.30
Bundle price
$28.69
A trapeze profile — also called T18 or a rib panel — and a strong alternative to standing seam on cottages, commercial buildings and farms. Laid vertically with exposed fasteners, it can go straight over existing shingles, and the same panel works as siding.
Share:
- Effective width
- 1100 mm (43.30 in)
- Total width
- 1150 mm (45.27 in)
- Rib / step height
- 20 mm (0.78 in)
- Minimum length
- 75.50 cm (29.7 in)
- Maximum length
- 24 ft and over, limited by delivery
- Core thickness
- 0.55 mm minimum — 25.5 gauge
- Zinc coating
- 275 g/m² minimum
- Finish
- Matte / crinkle look
- Type
- Architectural / structural panel
